Disconnected Agent-Based Cluster Installation

A disconnected environment is an environment that does not have full access to the internet.

OpenShift Container Platform is designed to perform many automatic functions that depend on an internet connection, such as retrieving release images from a registry or retrieving update paths and recommendations for the cluster. Without a direct internet connection, you must perform additional setup and configuration for your cluster to maintain full functionality in the disconnected environment.

Source: Understanding disconnected installation mirroring

How it works

You can use a mirror registry for disconnected installations and to ensure that your clusters only use container images that satisfy your organization’s controls on external content. Before you install a cluster on infrastructure that you provision in a disconnected environment, you must mirror the required container images into that environment. To mirror container images, you must have a registry for mirroring.

Connected Mirroring vs Disconnected Mirroring

Connected Mirroring is if you have a host that can access both the internet and your mirror registry, but not your cluster nodes, you can directly mirror the content from that machine.

Disconnected Mirroring is if you have no such host, you must mirror the images to a file system and then bring that host or removable media into your restricted environment.

Lab Environment Setup

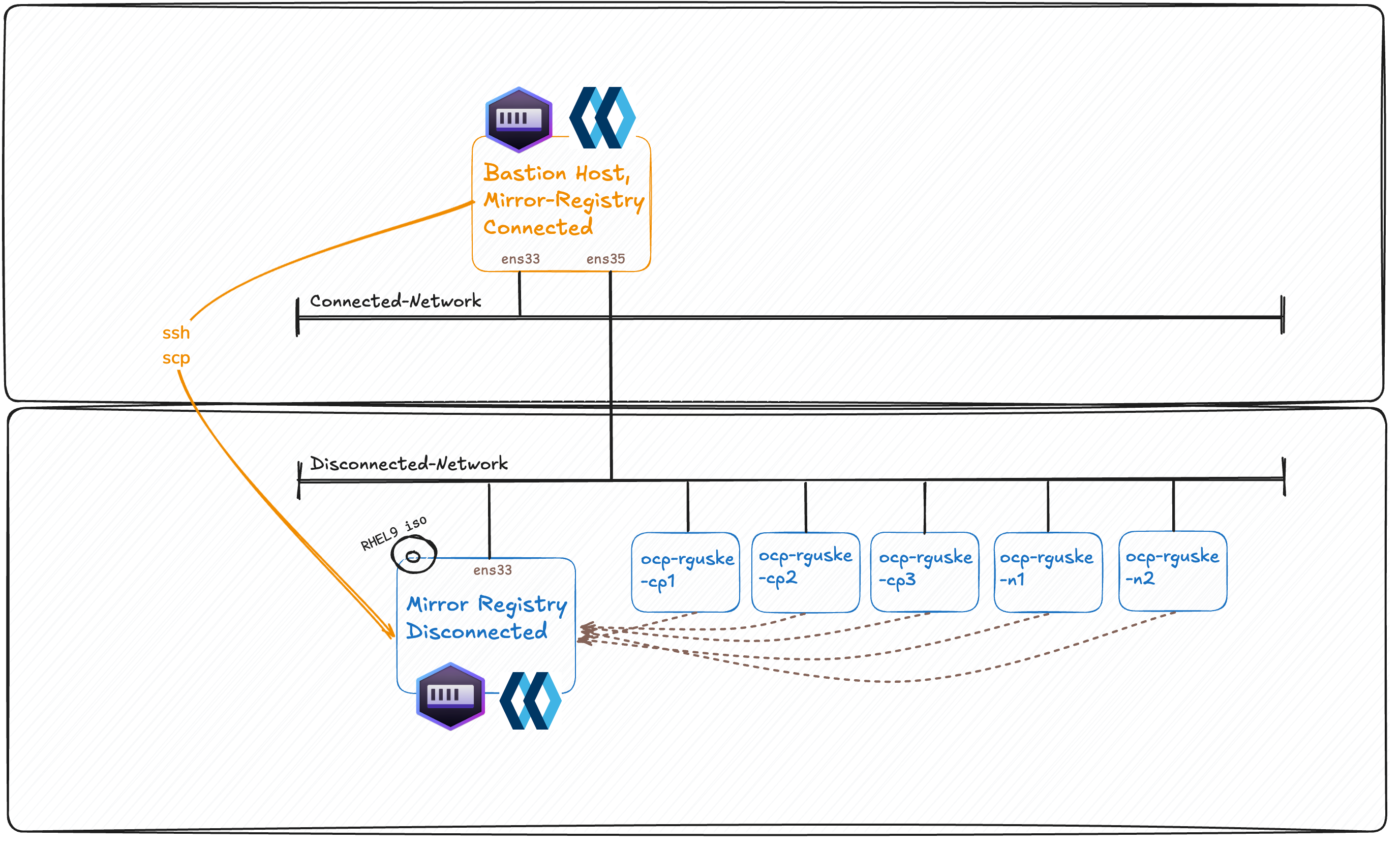

At a high-level, the testing setup has a bastion host which is dual-homed configured. One NIC is connected to the "public" network and the other NIC to the "disconnected" network. Most customer setups don't have a bastion connected to the public (internet) network. Anyways! We're going to "download" the images and storing all in a tar ball. This tar ball will be copied over to the mirror-registry host.

network-diagram

Bastion Host Preperation

Hostname

Make sure that your hostname is set correctly!

1
hostnamectl

The hostname must be a fqdn!

1
2
sudo hostnamectl set-hostname rguske-rhel9-disco-bastion.rguske.coe.muc.redhat.com
sudo reboot

RHEL Subscription Manager

Configure RHEL Subscription Manager:

sudo subscription-manager register --username --password '' --auto-attach

Networking Bastion-Host

Setup a Bastion Host with two nics. One is connected to the "internet-zone" and the other one to the disconnected network.

Configure the interfaces accordingly:

Configure the interface which has internet connection:

1
2
3
4
5
6
nmcli con show

NAME                UUID                                  TYPE      DEVICE
System eth0         5fb06bd0-0bb0-7ffb-45f1-d6edd65f3e03  ethernet  eth0
lo                  dd314177-6d3f-4ad3-a1af-2875d094c193  loopback  lo
Wired connection 1  c8d40ef7-3d02-3ba5-b047-dacd6d013b24  ethernet  --

1
2
3
4
5
nmcli con mod "System eth0" \
ipv4.addresses 10.32.96.145/20 \
ipv4.gateway 10.32.111.254 \
ipv4.dns "10.32.96.1,10.32.96.31" \
ipv4.method manual

Configure the interface which is connected to the disconnected network:

1
2
3
nmcli con mod "Wired connection 1" \
ipv4.addresses 192.168.69.208/24 \
ipv4.method manual

Bring both interfaces up:

1
2
3
4
nmcli dev reapply eth0 && nmcli dev reapply eth1

Connection successfully reapplied to device 'eth0'.
Connection successfully reapplied to device 'eth1'.

Alternatively:

1
2
3
4
nmcli con up "System eth0" && nmcli con up "Wired connection 1"

Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/25)
Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/26)

Check the new config:

1
2
3
4
ip -br a
lo               UNKNOWN        127.0.0.1/8 ::1/128
eth0             UP             10.32.96.145/20 2620:52:0:2060:d8:6dff:fe0f:3ed3/64 fe80::d8:6dff:fe0f:3ed3/64
eth1             UP             192.168.69.208/24 fe80::a0eb:9896:d4e1:3fbb/64

The configuration is stored under:

1
2
3
4
5
nmcli -f NAME,UUID,FILENAME con show
NAME                UUID                                  FILENAME
System eth0         5fb06bd0-0bb0-7ffb-45f1-d6edd65f3e03  /etc/sysconfig/network-scripts/ifcfg-eth0
Wired connection 1  c8d40ef7-3d02-3ba5-b047-dacd6d013b24  /etc/NetworkManager/system-connections/Wired connection 1.nmconnection
lo                  dd314177-6d3f-4ad3-a1af-2875d094c193  /run/NetworkManager/system-connections/lo.nmconnection

Readable configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
less /etc/sysconfig/network-scripts/ifcfg-eth0

# Created by cloud-init automatically, do not edit.
#
AUTOCONNECT_PRIORITY=120
BOOTPROTO=none
DEVICE=eth0
HWADDR=02:D8:6D:0F:3E:D3
IPV6INIT=yes
ONBOOT=yes
TYPE=Ethernet
USERCTL=no
PROXY_METHOD=none
BROWSER_ONLY=no
IPADDR=10.32.96.145
PREFIX=20
GATEWAY=10.32.111.254
DNS1=10.32.96.1
DNS2=10.32.96.31
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
NAME="System eth0"
UUID=5fb06bd0-0bb0-7ffb-45f1-d6edd65f3e03

And the other interface:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
less /etc/NetworkManager/system-connections/Wired\ connection\ 1.nmconnection

[connection]
id=Wired connection 1
uuid=c8d40ef7-3d02-3ba5-b047-dacd6d013b24
type=ethernet
autoconnect-priority=-999
interface-name=eth1

[ethernet]

[ipv4]
address1=192.168.69.208/24
method=manual

[ipv6]
addr-gen-mode=default
method=auto

[proxy]

Enable IP Forwarding: sysctl -w net.ipv4.ip_forward=1

This allows the VM to forward packets between interfaces.

Make it permanently:

1
2
vi /etc/sysctl.conf
net.ipv4.ip_forward = 1

Apply the changes: sysctl -p

On Red Hat Enterprise Linux, firewall-cmd is provided by the firewalld package. It is not guaranteed to be installed in minimal VM images.

Check whether firewalld is installed:

1
rpm -q firewalld

If it is missing, install and enable it:

1
2
sudo dnf install -y firewalld
sudo systemctl enable --now firewalld

Allow forwarding:

firewall-cmd --permanent --add-forward-port=port=22:proto=tcp:toport=22

Add trusted zones for both interfaces:

1
2
firewall-cmd --permanent --zone=public --add-interface=eth0
firewall-cmd --permanent --zone=trusted --add-interface=eth1

Check the configs:

1
2
3
4
5
firewall-cmd --get-active-zones
public
  interfaces: eth0
trusted
  interfaces: eth1

Also:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
firewall-cmd --zone=public --list-all
public (active)
  target: default
  icmp-block-inversion: no
  interfaces: eth0
  sources:
  services: cockpit dhcpv6-client ssh
  ports:
  protocols:
  forward: yes
  masquerade: no
  forward-ports:
  source-ports:
  icmp-blocks:
  rich rules:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
firewall-cmd --zone=trusted --list-all
trusted (active)
  target: ACCEPT
  icmp-block-inversion: no
  interfaces: eth1
  sources:
  services:
  ports:
  protocols:
  forward: yes
  masquerade: no
  forward-ports:
  source-ports:
  icmp-blocks:
  rich rules:

We will need to open up port 8443 for Quay:

1
firewall-cmd --add-port 8443/tcp --permanent

Reload firewall rules: firewall-cmd --reload

Configure Routing (if needed).

If devices in 192.168.69.0/24 need internet access via the VM, you need NAT:

1
2
sudo firewall-cmd --permanent --add-masquerade
sudo firewall-cmd --reload

Check IP forwarding: cat /proc/sys/net/ipv4/ip_forward

SSH

Configure ssh:

cat ~/.ssh/id_ed25519.pub | ssh rguske@rguske-rhel9-disco-bastion.rguske.coe.muc.redhat.com "mkdir -p ~/.ssh && cat >> ~/.ssh/authorized_keys && chmod 600 ~/.ssh/authorized_keys && chmod 700 ~/.ssh"

  • Generating an SSH key pair on your Bastion-Host. You can use this key pair to authenticate into the OpenShift Container Platform cluster’s nodes after it is deployed.

ssh-keygen -t ed25519 -N '' -f ~/.ssh/id_ed25519

Command Line Interfaces (CLIs)

On the bastion host, download the necessary cli's from Homepage:

You could use curl -LO <url> for it:

OpenShift Installer: curl -LO https://mirror.openshift.com/pub/openshift-v4/clients/ocp/4.21.11/openshift-install-rhel9-amd64.tar.gz

OpenShift Client: curl -LO https://mirror.openshift.com/pub/openshift-v4/clients/ocp/4.21.11/openshift-client-linux-amd64-rhel9-4.21.11.tar.gz

The "mirror" plugin for the OpenShift CLI client (oc) controls the process of mirroring all relevant container image for a full disconnected OpenShift installation in a central, declarative tool. Learn more(new window or tab)

RHEL 9 is FIPS compatible; RHEL 8 is non-FIPS compatible.

OpenShift Mirror CLI: curl -LO https://mirror.openshift.com/pub/openshift-v4/x86_64/clients/ocp/latest/oc-mirror.rhel9.tar.gz

Download and install a local, minimal single instance deployment of Red Hat Quay to aid bootstrapping the first disconnected cluster.

OpenShift Tiny Quay Registry: curl -LO https://mirror.openshift.com/pub/cgw/mirror-registry/latest/mirror-registry-amd64.tar.gz

This helps untaring the packages:

1
alias untar='tar -zxvf'

This is how it should like if you've downloaded all:

1
2
3
4
5
6
7
8
tree
.
├── clis
│   ├── oc-mirror.rhel9.tar.gz
│   ├── openshift-client-linux-amd64-rhel9-4.21.11.tar.gz
│   └── openshift-install-rhel9-amd64.tar.gz
└── mirror-registry
    └── mirror-registry-amd64.tar.gz

Unpack the .gz files, except execution-environment.tar, image-archive.tar and sqlite3.tar of the folder mirror-registry and move them into /usr/local/bin:

1
sudp mv {kubectl,oc,oc-mirror,openshift-install-fips} /use/local/bin

Apply rights:

1
2
sudo chown -R $USER /usr/local/bin/{kubectl,oc,oc-mirror,openshift-install-fips}
sudo chmod +x /usr/local/bin/{kubectl,oc,oc-mirror,openshift-install-fips}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
tree /usr/local/bin
/usr/local/bin
├── execution-environment.tar
├── firstboot-network-firewall.sh
├── image-archive.tar
├── kubectl
├── mirror-registry
├── oc
├── oc-mirror
├── openshift-install-fips
└── sqlite3.tar

0 directories, 9 file

If /usr/local/bin isn't included in the $PATH, run export PATH=/usr/local/bin:$PATH

Install Podman and Nmstate

In order to run the mirror registry, the bastion host needs a container-runtime installed.

Podman is the runtime of choice and is included in the container-tools package.

Install it via sudo dnf install container-tools -y.

The installer also uses nmstatectl for the creation of the agent.iso. Install it via sudo dnf install nmstate -y. Otherwise, you'll get the error:

1
FATAL   * failed to validate network yaml for host 0, install nmstate package, exec: "nmstatectl": executable file not found in $PATH

Installing Podman Offline

  • Mount a RHEL installation iso file to the system (VM or BM via Board Management Controller).

Check e.g. with lsblk for the disconnected "cdrom" (iso) device:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
[root@mirror-rguske ~]# lsblk
NAME          MAJ:MIN RM   SIZE RO TYPE MOUNTPOINTS
sda             8:0    0   120G  0 disk
├─sda1          8:1    0   600M  0 part /boot/efi
├─sda2          8:2    0     1G  0 part /boot
└─sda3          8:3    0 118.4G  0 part
  ├─rhel-root 253:0    0    70G  0 lvm  /
  ├─rhel-swap 253:1    0   7.9G  0 lvm  [SWAP]
  └─rhel-home 253:2    0  40.5G  0 lvm  /home
sr0            11:0    1    11G  0 rom
  • Create a folder in which the iso content will be accessible:

mkdir -p /mnt/rhel-iso

  • Mount the connected iso accordingly:

mount -o loop /path/to/rhel.iso /mnt/rhel-iso

Example in my case with a VM: mount -o loop /dev/sr0 /mnt/rhel-iso

  • Create a Local Repository:
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
cat <<EOF | tee /etc/yum.repos.d/rhel9-iso.repo
[rhel9-iso-BaseOS]
name=RHEL9-ISO-BaseOS
baseurl=file:///mnt/rhel-iso/BaseOS/
enabled=1
gpgcheck=0

[rhel9-iso-AppStream]
name=RHEL9-ISO-AppStream
baseurl=file:///mnt/rhel-iso/AppStream/
enabled=1
gpgcheck=0
EOF
  • Install Podman and nmstate

dnf install podman -y dnf install nmstate -y

Installing the Mirror Registry on the Bastion Host

Prerequisites

  • An OpenShift Container Platform subscription.
  • Red Hat Enterprise Linux (RHEL) 8 and 9 with Podman 3.4.2 or later and OpenSSL installed. If you are using Podman 5.7 or later, see "Configuring rootless Podman networking".
  • Fully qualified domain name for the Red Hat Quay service, which must resolve through a DNS server.
  • Key-based SSH connectivity on the target host. SSH keys are automatically generated for local installs. For remote hosts, you must generate your own SSH keys.
  • 2 or more vCPUs.
  • 8 GB of RAM.
  • About 12 GB for OpenShift Container Platform 4.21 release images, or about 358 GB for OpenShift Container Platform 4.21 release images and OpenShift Container Platform 4.21 Red Hat Operator images.

You can use any container registry that supports Docker v2-2, such as Red Hat Quay, the mirror registry for Red Hat OpenShift, Artifactory, Sonatype Nexus Repository, or Harbor.

The OpenShift image registry cannot be used as the target registry because it does not support pushing without a tag, which is required during the mirroring process.

Install the mirror registry:

At this point it is important to understand that my bastion is dual-homed.

1
2
3
4
dig +short rguske-rhel9-disco-bastion.rguske.coe.muc.redhat.com
10.32.96.145
dig +short rguske-rhel9-disco-bastion.disco.local
192.168.69.208

In this scenario it is important to use the DNS record which points to the IP in the disco subnet.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
[root@bastion-rguske mirror-registry]# mirror-registry install --quayHostname rguske-rhel9-disco-bastion.disco.local --quayRoot '/home/$USER/downloads/mirror-registry/root' --initPassword 'r3dh4t1!' --verbose

   __   __
  /  \ /  \     ______   _    _     __   __   __
 / /\ / /\ \   /  __  \ | |  | |   /  \  \ \ / /
/ /  / /  \ \  | |  | | | |  | |  / /\ \  \   /
\ \  \ \  / /  | |__| | | |__| | / ____ \  | |
 \ \/ \ \/ /   \_  ___/  \____/ /_/    \_\ |_|
  \__/ \__/      \ \__
                  \___\ by Red Hat
 Build, Store, and Distribute your Containers

INFO[2026-04-22 05:16:03] Install has begun
DEBU[2026-04-22 05:16:03] Ansible Execution Environment Image: quay.io/quay/mirror-registry-ee:latest
DEBU[2026-04-22 05:16:03] Pause Image: registry.access.redhat.com/ubi8/pause:8.10-5
DEBU[2026-04-22 05:16:03] Quay Image: registry.redhat.io/quay/quay-rhel8:v3.12.14
DEBU[2026-04-22 05:16:03] Redis Image: registry.redhat.io/rhel8/redis-6:1-1766406130
INFO[2026-04-22 05:16:03] Found execution environment at /usr/local/bin/execution-environment.tar
INFO[2026-04-22 05:16:03] Loading execution environment from execution-environment.tar
DEBU[2026-04-22 05:16:03] Importing execution environment with command: /bin/bash -c /usr/bin/podman image import \
                                        --change 'ENV PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin' \
                                        --change 'ENV HOME=/home/runner' \
                                        --change 'ENV container=oci' \
                                        --change 'ENTRYPOINT=["entrypoint"]' \
                                        --change 'WORKDIR=/runner' \
                                        --change 'EXPOSE=6379' \
                                        --change 'VOLUME=/runner' \
                                        --change 'CMD ["ansible-runner", "run", "/runner"]' \
                                        - quay.io/quay/mirror-registry-ee:latest < /usr/local/bin/execution-environment.tar
Getting image source signatures
Copying blob 159de7f3f142 done   |
Copying config 3055d6ebc0 done   |
Writing manifest to image destination
sha256:3055d6ebc0dd81d1b676e94a7c1c06eef2c94ddc5abe2f197147b013184afd81
INFO[2026-04-22 05:16:13] Detected an installation to localhost
INFO[2026-04-22 05:16:13] Did not find SSH key in default location. Attempting to set up SSH keys.
INFO[2026-04-22 05:16:13] Generating SSH Key
Generating public/private rsa key pair.
Your identification has been saved in /root/.ssh/quay_installer
Your public key has been saved in /root/.ssh/quay_installer.pub

[...]

TASK [mirror_appliance : Create init user] ***********************************************************************************************************************************************************************************************************************************************************************
included: /runner/project/roles/mirror_appliance/tasks/create-init-user.yaml for rguske@rguske-rhel9-disco-bastion.rguske.coe.muc.redhat.com

TASK [mirror_appliance : Creating init user at endpoint https://rguske-rhel9-disco-bastion.disco.local:8443/api/v1/user/initialize] ******************************************************************************************************************************************************************************
ok: [rguske@rguske-rhel9-disco-bastion.rguske.coe.muc.redhat.com]

TASK [mirror_appliance : Enable lingering for systemd user processes] ********************************************************************************************************************************************************************************************************************************************
changed: [rguske@rguske-rhel9-disco-bastion.rguske.coe.muc.redhat.com]

PLAY RECAP *******************************************************************************************************************************************************************************************************************************************************************************************************
rguske@rguske-rhel9-disco-bastion.rguske.coe.muc.redhat.com : ok=49   changed=29   unreachable=0    failed=0    skipped=15   rescued=0    ignored=0

INFO[2026-04-24 10:18:34] Quay installed successfully, config data is stored in /home/$USER/downloads/mirror-registry/root
INFO[2026-04-24 10:18:34] Quay is available at https://rguske-rhel9-disco-bastion.disco.local:8443 with credentials (init, r3dh4t1!)

Alternative customizations examples:

1.: /mirror-registry install --quayHostname mirror.example.org --sslKey tls.key --targetHostname internal.mirror --quayRoot /var/mirror-registry --initPassword changeme

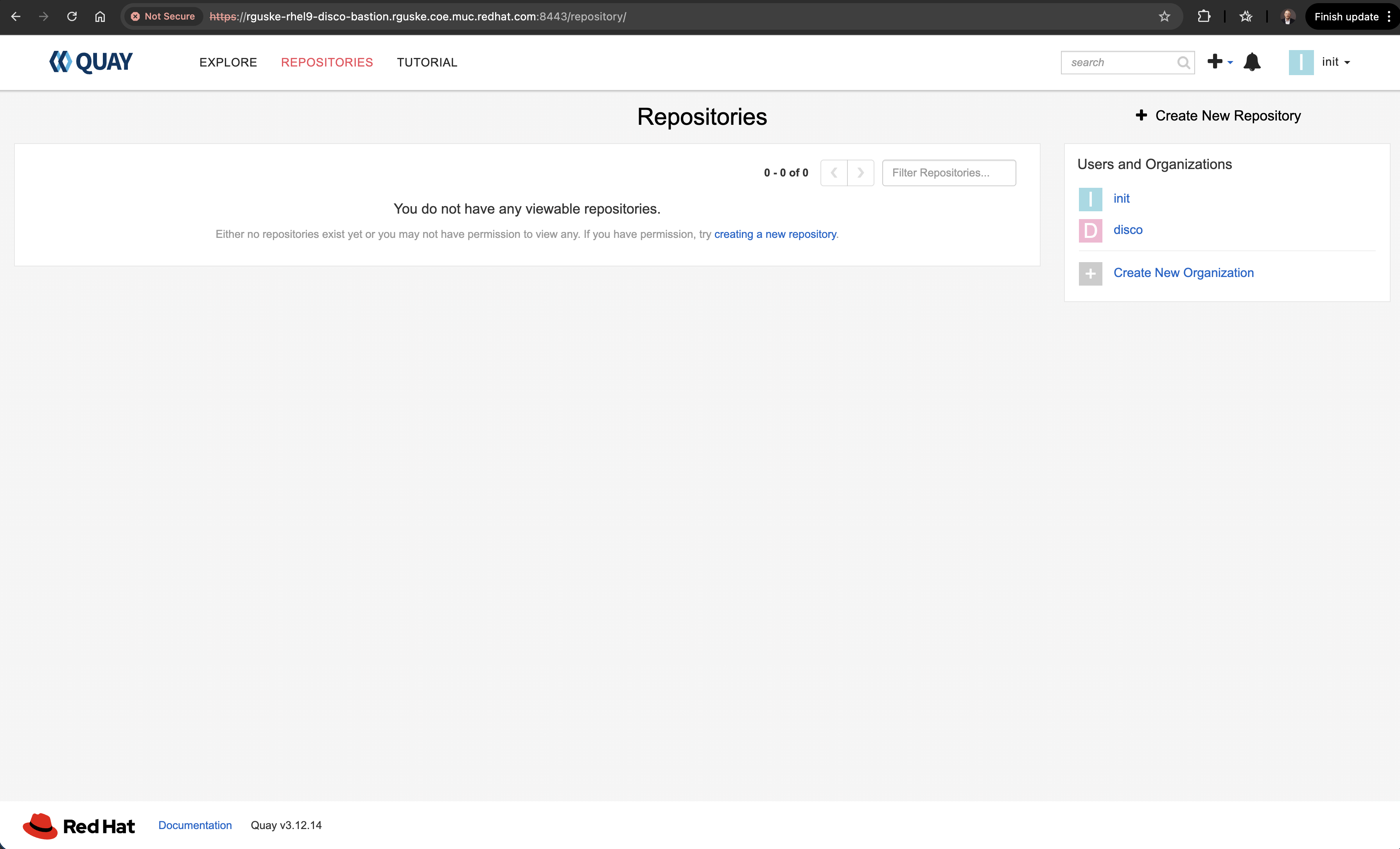

Source: Mirror registry for Red Hat OpenShift flags.

mirror-registry

Validating the installation

Validating the endpoint using curl:

1
2
curl -k https://rguske-rhel9-disco-bastion.disco.local:8443/health/instance
{"data":{"services":{"auth":true,"database":true,"disk_space":true,"registry_gunicorn":true,"service_key":true,"web_gunicorn":true}},"status_code":200}

Checking the certificate:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
echo | openssl s_client -connect rguske-rhel9-disco-bastion.disco.local:8443 -showcerts
Connecting to 192.168.69.208
CONNECTED(00000003)
depth=1 C=US, ST=VA, L=New York, O=Quay, OU=Division, CN=rguske-rhel9-disco-bastion.disco.local
verify error:num=19:self-signed certificate in certificate chain
verify return:1
depth=1 C=US, ST=VA, L=New York, O=Quay, OU=Division, CN=rguske-rhel9-disco-bastion.disco.local
verify return:1
depth=0 CN=quay-enterprise
verify return:1
---
Certificate chain
 0 s:CN=quay-enterprise
   i:C=US, ST=VA, L=New York, O=Quay, OU=Division, CN=rguske-rhel9-disco-bastion.disco.local
   a:PKEY: RSA, 2048 (bit); sigalg: sha256WithRSAEncryption
   v:NotBefore: Apr 24 14:17:18 2026 GMT; NotAfter: Apr 15 14:17:18 2027 GMT
-----BEGIN CERTIFICATE-----

[...]

Also, validate the certificate which we are going trust on our bastion host.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
openssl x509 -in ~/downloads/mirror-registry/root/quay-config/ssl.cert -text -noout
Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number:
            16:06:dd:b0:be:99:47:81:76:52:85:9c:15:1e:76:0d:ab:99:35:ea
        Signature Algorithm: sha256WithRSAEncryption
        Issuer: C=US, ST=VA, L=New York, O=Quay, OU=Division, CN=rguske-rhel9-disco-bastion.disco.local
        Validity
            Not Before: Apr 24 14:17:18 2026 GMT
            Not After : Apr 15 14:17:18 2027 GMT
[...]

Systemd auto-start is also configured:

1
2
3
4
sudo systemctl list-units --type service | grep quay
  quay-app.service                                      loaded active running Quay Container
  quay-pod.service                                      loaded active exited  Infra Container for Quay
  quay-redis.service                                    loaded active running Redis Podman Container for Quay

Login into the Mirror Registry

1
podman login -u init -p 'r3dh4t1!' https://rguske-rhel9-disco-bastion.disco.local:8443 --tls-verify=false

It is also possible without using the option --tls-verify=false by trusting the newly created certificates which are stored in root / quay-config:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
tree
.
├── pause.tar
├── quay.tar
├── redis.tar
└── root
    ├── quay-config
    │   ├── config.yaml
    │   ├── openssl.cnf
    │   ├── ssl.cert
    │   ├── ssl.csr
    │   └── ssl.key
    └── quay-rootCA
        ├── rootCA.key
        ├── rootCA.pem
        └── rootCA.srl

Copy the certs:

sudo cp ~/downloads/mirror-registry/root/quay-config/ssl.cert /etc/pki/ca-trust/source/anchors/

1
2
3
4
tree /etc/pki/ca-trust/source/anchors/
└── ssl.cert

0 directories, 1 file

Update the trust:

update-ca-trust

Logout:

1
2
3
podman logout https://rguske-rhel9-disco-bastion.disco.local:8443

Removed login credentials for rguske-rhel9-disco-bastion.disco.local:8443

Login again:

1
2
3
podman login -u init -p 'r3dh4t1!' 'https://rguske-rhel9-disco-bastion.disco.local:8443'

Login Succeeded!

Uninstalling the Mirror Registry

mirror-registry uninstall

Mirroring Images

You must have access to the internet to obtain the necessary container images. In this procedure, you place your mirror registry on a mirror host that has access to both your network and the internet. If you do not have access to a mirror host, use the Mirroring Operator catalogs for use with disconnected clusters procedure to copy images to a device you can move across network boundaries with.

Procedure and prerequisites:

  • You configured a mirror registry to use in your disconnected environment.
  • You identified an image repository location on your mirror registry to mirror images into.
  • You provisioned a mirror registry account that allows images to be uploaded to that image repository.
  • You have write access to the mirror registry.

Obtain your pull secret from Red Hat OpenShift Cluster Manager and paste the json content into $XDG_RUNTIME_DIR/containers/auth.json. Be careful! It must be in json.

Make a copy of your pull secret in JSON format by running the following command:

Paste the content in the file pull-scret. Then:

cat ./pull-secret | jq . > $(pwd)/pull-secret.json

Replace the existing auth.json file in $XDG_RUNTIME_DIR/containers/

1
sudo mv pull-secret.json $XDG_RUNTIME_DIR/containers/auth.json

Next up is to generate the base64-encoded user name and password or token for your mirror registry by running the following command:

echo -n '<user_name>:<password>' | base64 -w0

For and , specify the user name and password that you configured for your registry.

Example:

echo -n 'init:r3dh4t1!' | base64 -w0

Edit the JSON file and add a section that describes your registry to it:

1
2
3
4
5
6
7
8
  "auths": {
    "rguske-rhel9-disco-bastion.rguske.coe.muc.redhat.com:8443": {
      "auth": "aW5pdDpyM2RoNHQxIQ==",
      "email": "rguske@redhat.com"
    },
    "cloud.openshift.com": {

[...]

Creating the image set configuration

Create an ImageSetConfiguration YAML file and modify it to include your required images.

List the available Operator using e.g.:

1
oc mirror list operators --catalogs --version=4.21 --v1

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
tee imagesetconfiguration.yaml > /dev/null <<'EOF'
kind: ImageSetConfiguration
apiVersion: mirror.openshift.io/v2alpha1
mirror:
  platform:
    channels:
    - name: stable-4.21
      type: ocp
      shortestPath: true
      minVersion: 4.21.10
      maxVersion: 4.21.11
    graph: true
  operators:
  - catalog: registry.redhat.io/redhat/redhat-operator-index:v4.21
    packages:
## cincinnati-operator:v1
    - name: cincinnati-operator
      channels:
      - name: v1
        minVersion: '5.0.3'
        # maxVersion: '5.0.3'
## kubernetes-nmstate-operator:stable
    - name: kubernetes-nmstate-operator
      channels:
      - name: 'stable'
        minVersion: '4.21.0-202604080925'
        # maxVersion: '4.17.0-202502120148'
## kubevirt-hyperconverged:stable
    - name: kubevirt-hyperconverged
      channels:
      - name: stable
        minVersion: '4.21.3'
        # maxVersion: '4.17.4'
## metallb-operator:stable
    - name: metallb-operator
      channels:
      - name: stable
        minVersion: '4.21.0-202604140043'
        # maxVersion: 'v4.17.0'
## web-terminal:fast
    - name: web-terminal
      channels:
      - name: fast
        minVersion: '1.16.0'
        # maxVersion: 'v1.15.0'
## web-terminal relies on devworkspace-operator
#    - name: devworkspace-operator
#      channels:
#      - name: fast
#        minVersion: '0.40-1776457293'
## OpenShift Data Foundation
    - name: odf-operator
      channels:
      - name: stable-4.21
        minVersion: '4.21.2-rhodf'
## OpenShift Local Storage Operator
    - name: local-storage-operator
      channels:
      - name: stable
        minVersion: '4.21.0-202604200440'
  additionalImages:
    - name: registry.redhat.io/ubi8/ubi:latest
    - name: registry.redhat.io/rhel9/rhel-guest-image:latest
    - name: quay.io/rhn_support_sreber/curl:latest
    # Important for KMM & GPFS Build
    - name: registry.redhat.io/ubi9/ubi-minimal:latest
    - name: registry.redhat.io/ubi9/ubi@sha256:20f695d2a91352d4eaa25107535126727b5945bff38ed36a3e59590f495046f0
    - name: quay.io/rguske/vddk@sha256:26d07e11f7f8dcca263e83a1d942fe9274c90418c5bfc17fad88b61ddabf95ed
    - name: quay.io/rguske/simple-web-app@sha256:f1c474d0b214975d2fb95d14967b620daa0cdbef094ee509fec1659d55c3a6de
    # Virtualization Images
    - name: quay.io/containerdisks/centos-stream:9
    - name: quay.io/containerdisks/fedora:latest
EOF

Ensure that clis are in your $PATH. Otherwise export PATH=/usr/local/bin:$PATH.

The oc-mirror plugin v2 automatically generates the following custom resources:

  • ImageDigestMirrorSet (IDMS): Handles registry mirror rules when using image digest pull specifications. Generated if at least one image of the image set is mirrored by digest.
  • ImageTagMirrorSet (ITMS): Handles registry mirror rules when using image tag pull specifications. Generated if at least one image from the image set is mirrored by tag.
  • CatalogSource: Retrieves information about the available Operators in the mirror registry. Used by Operator Lifecycle Manager (OLM) Classic.
  • ClusterCatalog: Retrieves information about the available cluster extensions (which includes Operators) in the mirror registry. Used by OLM v1.
  • UpdateService: Provides update graph data to the disconnected environment. Used by the OpenShift Update Service.

Mirror the images from the specified image set configuration to the disk by running the following command:

1
oc mirror -c $(pwd)/openshift/imagesetconfiguration.yaml file://$(pwd) --v2

1
oc-mirror -c $(pwd)/openshift/imagesetconfiguration.yaml file:///home/rguske/openshift/mirror --v2

Result:

1
2
3
4
5
6
7
2026/04/23 12:55:55  [INFO]   : === Results ===
2026/04/23 12:55:55  [INFO]   :  ✓  193 / 193 release images mirrored successfully
2026/04/23 12:55:55  [INFO]   :  ✓  95 / 95 operator images mirrored successfully
2026/04/23 12:55:55  [INFO]   :  ✓  7 / 7 additional images mirrored successfully
2026/04/23 12:55:55  [INFO]   : 📦 Preparing the tarball archive...
2026/04/23 12:58:48  [INFO]   : mirror time     : 19m53.229903012s
2026/04/23 12:58:48  [INFO]   : 👋 Goodbye, thank you for using oc-mirror

1
2
3
4
ls -ltr
total 61212944
drwxr-xr-x. 12 rguske rguske        4096 Apr 23 12:39 working-dir
-rw-r--r--.  1 rguske rguske 62682043392 Apr 23 12:58 mirror_000001.tar

Upload to your mirror registry:

1
oc mirror -c $(pwd)/imagesetconfiguration.yaml --from file://$(pwd)/mirror/ docker://rguske-rhel9-disco-bastion.disco.local:8443/disco --v2

Results:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
2026/04/24 11:34:43  [INFO]   : === Results ===
2026/04/24 11:34:43  [INFO]   :  ✓  193 / 193 release images mirrored successfully
2026/04/24 11:34:43  [INFO]   :  ✓  95 / 95 operator images mirrored successfully
2026/04/24 11:34:43  [INFO]   :  ✓  7 / 7 additional images mirrored successfully
2026/04/24 11:34:43  [INFO]   : 📄 Generating IDMS file...
2026/04/24 11:34:43  [INFO]   : /home/rguske/openshift/mirror/working-dir/cluster-resources/idms-oc-mirror.yaml file created
2026/04/24 11:34:43  [INFO]   : 📄 Generating ITMS file...
2026/04/24 11:34:43  [INFO]   : /home/rguske/openshift/mirror/working-dir/cluster-resources/itms-oc-mirror.yaml file created
2026/04/24 11:34:43  [INFO]   : 📄 Generating CatalogSource file...
2026/04/24 11:34:43  [INFO]   : /home/rguske/openshift/mirror/working-dir/cluster-resources/cs-redhat-operator-index-v4-21.yaml file created
2026/04/24 11:34:43  [INFO]   : 📄 Generating ClusterCatalog file...
2026/04/24 11:34:43  [INFO]   : /home/rguske/openshift/mirror/working-dir/cluster-resources/cc-redhat-operator-index-v4-21.yaml file created
2026/04/24 11:34:43  [INFO]   : 📄 Generating Signature Configmap...
2026/04/24 11:34:43  [INFO]   : /home/rguske/openshift/mirror/working-dir/cluster-resources/signature-configmap.json file created
2026/04/24 11:34:43  [INFO]   : /home/rguske/openshift/mirror/working-dir/cluster-resources/signature-configmap.yaml file created
2026/04/24 11:34:43  [INFO]   : 📄 Generating UpdateService file...
2026/04/24 11:34:43  [INFO]   : /home/rguske/openshift/mirror/working-dir/cluster-resources/updateService.yaml file created
2026/04/24 11:34:43  [INFO]   : mirror time     : 50m26.676667165s
2026/04/24 11:34:43  [INFO]   : 👋 Goodbye, thank you for using oc-mirror

NOTE! The necessary manifests for your install-config.yaml are generated by the oc-mirror tool:

Generating IDMS file... 2026/04/24 11:34:43 [INFO] : /home/rguske/openshift/mirror/working-dir/cluster-resources/

Unexpected status code 413 Request Entity Too Large

If this hits you, try using the following options:

1
2
oc mirror -c $(pwd)/imagesetconfiguration.yaml --from file://$(pwd)/mirror/ docker://rguske-rhel9-disco-bastion.
disco.local:8443/disco --image-timeout 2h --parallel-images=10 --parallel-layers=10 --retry-times=5 --retry-delay=10s --v2

Documented in oc-mirror v2 fails with context deadline exceeded when mirroring large images to a local registry in RHOCP 4.

Installing a disconnected Cluster using the Agent Based Installer

When you use a disconnected mirror registry, you must add the certificate file that you created previously for your mirror registry to the additionalTrustBundle field of the install-config.yaml file.

Workflow:

  • Create mirror registry content (oc mirror) ✅
  • Create installation assets (install-config.yaml)
  • Create the cluster
  • Apply mirror configuration to the new cluster

Cluster Preperations

Network 192.168.69.0/24 DNS: 192.168.69.6 GW: 192.168.69.254 VLAN ID 69

Collecting the necessary nic information:

name nic mac ipv4 comment
rguske-ocp42-disco-1 enp1s0 02:d8:6d:0f:3e:dc 192.168.69.202 Node 1
rguske-ocp42-disco-2 enp1s0 02:d8:6d:0f:3e:dd 192.168.69.203 Node 2
rguske-ocp42-disco-3 enp1s0 02:d8:6d:0f:3e:de 192.168.69.204 Node 3

BaseDomain: disco.local

Configurations

Create the agent-config.yaml as well as the install-config.yaml

1
2
3
4
5
tree rguske-ocp42-disco/
rguske-ocp42-disco/
└── conf
    ├── agent-config.yaml
    └── install-config.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
cat > agent-config.yaml << EOF
apiVersion: v1beta1
kind: AgentConfig
metadata:
  name: rguske-ocp42-disco
rendezvousIP: 192.168.69.202
hosts:
  - hostname: rguske-ocp42-disco-1.disco.local
    role: master
    interfaces:
      - name: enp1s0
        macAddress: 02:d8:6d:0f:3e:dc
    networkConfig:
      interfaces:
        - name: enp1s0
          type: ethernet
          state: up
          mac-address: 02:d8:6d:0f:3e:dc
          ipv4:
            enabled: true
            address:
              - ip: 192.168.69.202
                prefix-length: 24
            dhcp: false
      dns-resolver:
        config:
          server:
            - 192.168.69.6
      routes:
        config:
          - destination: 0.0.0.0/0
            next-hop-address: 192.168.69.254
            next-hop-interface: enp1s0
            table-id: 254
  - hostname: rguske-ocp42-disco-2.disco.local
    role: master
    interfaces:
      - name: enp1s0
        macAddress: 02:d8:6d:0f:3e:dd
    networkConfig:
      interfaces:
        - name: enp1s0
          type: ethernet
          state: up
          mac-address: 02:d8:6d:0f:3e:dd
          ipv4:
            enabled: true
            address:
              - ip: 192.168.69.203
                prefix-length: 24
            dhcp: false
      dns-resolver:
        config:
          server:
            - 192.168.69.6
      routes:
        config:
          - destination: 0.0.0.0/0
            next-hop-address: 192.168.69.254
            next-hop-interface: enp1s0
            table-id: 254
  - hostname: rguske-ocp42-disco-3.disco.local
    role: master
    interfaces:
      - name: enp1s0
        macAddress: 02:d8:6d:0f:3e:de
    networkConfig:
      interfaces:
        - name: enp1s0
          type: ethernet
          state: up
          mac-address: 02:d8:6d:0f:3e:de
          ipv4:
            enabled: true
            address:
              - ip: 192.168.69.204
                prefix-length: 24
            dhcp: false
      dns-resolver:
        config:
          server:
            - 192.168.69.6
      routes:
        config:
          - destination: 0.0.0.0/0
            next-hop-address: 192.168.69.254
            next-hop-interface: enp1s0
            table-id: 254
EOF

The ssl certificate of the mirror-registry which will be used in the install-config.yaml can be found within the mirror-registry/root/quay-rootCA folder. Example: /home/rguske/downloads/mirror-registry/root/quay-rootCA

1
2
3
4
5
6
7
8
{
  "auths": {
    "rguske-rhel9-disco-bastion.rguske.coe.muc.redhat.com:8443": {
      "auth": "aW5pdDpyM2RoNHQxIQ==",
      "email": "rguske@redhat.com"
    }
  }
}

Remember! The IDS config is stored here:

1
2
Generating IDMS file...
2026/04/24 11:34:43  [INFO]   : /home/rguske/openshift/mirror/working-dir/cluster-resources/

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
cat > install-config.yaml << EOF
apiVersion: v1
baseDomain: disco.local
ImageDigestSources:
- mirrors:
  - rguske-rhel9-disco-bastion.disco.local:8443/disco/openshift/release
  source: quay.io/openshift-release-dev/ocp-v4.0-art-dev
- mirrors:
  - rguske-rhel9-disco-bastion.disco.local:8443/disco/openshift/release-images
  source: quay.io/openshift-release-dev/ocp-release
additionalTrustBundle: |
  -----BEGIN CERTIFICATE-----
  MIIEHDCCAwSgAwIBAgIUFY/Z+WmgJ+8SIREIa3Cl3FRj9jYwDQYJKoZIhvcNAQEL
  BQAwgYAxCzAJBgNVBAYTAlVTMQswCQYDVQQIDAJWQTERMA8GA1UEBwwITmV3IFlv
  cmsxDTALBgNVBAoMBFF1YXkxETAPBgNVBAsMCERpdmlzaW9uMS8wLQYDVQQDDCZy
  Z3Vza2UtcmhlbDktZGlzY28tYmFzdGlvbi5kaXNjby5sb2NhbDAeFw0yNjA0MjQx
  NDE3MTZaFw0yOTAyMTExNDE3MTZaMIGAMQswCQYDVQQGEwJVUzELMAkGA1UECAwC
...
  ZyYMLJyR83M5sD7sVbbuSOkYgNt20ZdIcqigIkyABRkqcahC7kOypXXJbhkj3fYL
  kyGukgbJRF96hCB9oO8bW3evact/P40arsjHT6qKRIZf0kKm7CYUVRjI4+jlz+oV
  n7iB3Rs8P16UvuFB2LfWmyNfuu21InZhXLmJ+rZJc0qnpq6Rm8iXAq0n8L5ycCHc
  gPt4JJQZJ8JP6bSREgAhqfNSngfLj73O1+S2fuN7i3mCQEv0UajEhQgHQtcZ6r1C
  -----END CERTIFICATE-----
compute:
- name: worker
  replicas: 0
controlPlane:
  name: master
  replicas: 3
metadata:
  name: rguske-ocp42-disco
networking:
  clusterNetwork:
    - cidr: 10.128.0.0/14
      hostPrefix: 23
  machineNetwork:
    - cidr: 192.168.69.0/24
  serviceNetwork:
    - 172.30.0.0/16
  networkType: OVNKubernetes
platform:
  baremetal:
    apiVIPs:
    - 192.168.69.200
    ingressVIPs:
    - 192.168.69.201
fips: false
pullSecret: '{
  "auths": {
    "rguske-rhel9-disco-bastion.disco.local:8443": {
      "auth": "aW5pdDpyM2RoNHQxIQ==",
      "email": "rguske@redhat.com"
    }
  }
}'
sshKey: 'ssh-ed25519 AAAAC3NzaC1lZ...VzGQ/Ur5Ek0v9gF rguske@rguske-rhel9-disco-bastion.rguske.coe.muc.redhat.com'
EOF

Create a new openshift-install-fips binary which only points to your mirror-registry.

1
2
3
4
5
export LOCAL_SECRET_JSON='/home/rguske/openshift/new-pull-secret.json' \
export LOCAL_REGISTRY='rguske-rhel9-disco-bastion.disco.local:8443' \
export LOCAL_REPOSITORY='disco/openshift/release-images' \
export OCP_RELEASE='4.21.10' \
export ARCHITECTURE='x86_64'

1
oc adm release extract -a ${LOCAL_SECRET_JSON} --idms-file=/home/rguske/openshift/mirror/working-dir/cluster-resources/idms-oc-mirror.yaml --command=openshift-install-fips "${LOCAL_REGISTRY}/${LOCAL_REPOSITORY}:${OCP_RELEASE}-${ARCHITECTURE}"

1
2
3
4
5
6
tree -L 1
.
├── downloads
├── oc-mirror-web-app
├── openshift
└── openshift-install-fips

Validate it:

1
2
3
4
5
6
7
./openshift-install-fips version
./openshift-install-fips 4.21.10
built from commit 6285755d199e7aa7bf29db5fe6964ce7f3684ed9
release image rguske-rhel9-disco-bastion.disco.local:8443/disco/openshift/release-images@sha256:5d591a70c92a6dfa3b6b948ffe5e5eac7ab339c49005744006aa0dd9d6d98898
Release Image Architecture is unknown
release architecture unknown
default architecture amd64

Note the release image reference! This binary will be used for the creation of the agent.iso.

Create Agent iso

Create the install-config.yaml and agent-install.yaml file.

Run ./openshift-install-fips agent create image --dir /home/rguske/openshift/rguske-ocp42-disco/conf/

Example output :

1
2
3
4
5
6
7
8
INFO Configuration has 3 master replicas, 0 arbiter replicas, and 0 worker replicas
WARNING The imageDigestSources configuration in install-config.yaml should have at least one source field matching the releaseImage value rguske-rhel9-disco-bastion.disco.local:8443/disco/openshift/release-images@sha256:5d591a70c92a6dfa3b6b948ffe5e5eac7ab339c49005744006aa0dd9d6d98898
INFO The rendezvous host IP (node0 IP) is 192.168.69.202
INFO Extracting base ISO from release payload
INFO Base ISO obtained from release and cached at [/home/rguske/.cache/agent/image_cache/coreos-x86_64.iso]
INFO Consuming Install Config from target directory
INFO Consuming Agent Config from target directory
INFO Generated ISO at /home/rguske/openshift/rguske-ocp42-disco/conf/agent.x86_64.iso.

If you still have problemes with the release-image reference use:

1
export OPENSHIFT_INSTALL_RELEASE_IMAGE_OVERRIDE='rguske-rhel9-disco-bastion.rguske.coe.muc.redhat.com:8443/disco/openshift/release-images@sha256:5d591a70c92a6dfa3b6b948ffe5e5eac7ab339c49005744006aa0dd9d6d98898'

Mount the agent.x86_64.iso on the machines (BM or VM).

If you're running the bastion host on e.g. OpenShift Virtualization, you can use the following command in order to upload the ise to a pvc:

1
2
3
4
VERSION=$(curl -s https://api.github.com/repos/kubevirt/kubevirt/releases/latest | grep tag_name | cut -d '"' -f 4)
curl -L -o virtctl https://github.com/kubevirt/kubevirt/releases/download/$VERSION/virtctl-$VERSION-linux-amd64
chmod +x virtctl
sudo mv virtctl /usr/local/bin/

Login into your existing OpenShift cluster, change into your project and upload the iso:

1
virtctl image-upload pvc rguskeagentiso-disco --size 2Gi --storage-class coe-netapp-nas --access-mode ReadWriteMany --image-path ~/openshift/rguske-ocp42-disco/conf/agent.x86_64.iso --insecure

Boot the machines and wait until the installation is done.

Validate the installer progress using ./openshift-install-fips wait-for install-complete --dir /home/rguske/openshift/rguske-ocp42-disco/conf/ --log-level=debug

Run a httpd webserver on the bastion to share the iso

Depending on your environment, providing the created iso can be cumbersome.

One quick and easy way could be by making it downloadable via a webserver.

Install httpd on the bastion host.

1
2
3
4
dnf install httpd
sudo systemctl enable --now httpd
sudo firewall-cmd --permanent --add-service=http
sudo firewall-cmd --reload

Validate the service is running:

1
2
3
sudo ss -tuln | grep :80
curl -I http://localhost
sudo tail -f /var/log/httpd/error_log

Copy (scp agent.x86_64.iso root@192.168.69.208:/root/download/) the agent.iso from the mirror registry to the bastion host which has access to the target (ESXi server for example).

Copy the created iso into /var/www/html/ on the bastion host.

Download the iso by using e.g. wget http://<bastion-name/ip>/agent.x86_64.iso.

Example:

1
2
3
4
wget http://bastion-rguske.rguske.coe.muc.redhat.com/agent.x86_64.iso
Connecting to bastion-rguske.rguske.coe.muc.redhat.com (10.32.96.138:80)
saving to 'agent.x86_64.iso'
agent.x86_64.iso      21%  ********************************************   |  261M  0:00:10 ETA

Post Cluster Installation

After the cluster installation is done, apply the by oc-mirror ... --from file:// created manifests to the cluster:

1
oc apply -f /home/rguske/openshift/mirror/working-dir/cluster-resources/ .

Using Operator Lifecycle Manager in disconnected environments

Docs: Using Operator Lifecycle Manager in disconnected environments

Disable the CatalogSources for the default catalogs by adding disableAllDefaultSources: true to the OperatorHub object:

1
2
oc patch OperatorHub cluster --type json \
    -p '[{"op": "add", "path": "/spec/disableAllDefaultSources", "value": true}]'

The new CatalogSource manifest was create by oc-mirror in the working-dir: (/home/rguske/openshift/mirror/working-dir/cluster-resources/)

Example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
oc create -f - <<EOF
apiVersion: operators.coreos.com/v1alpha1
kind: CatalogSource
metadata:
  name: cs-redhat-operator-index-v4-21
  namespace: openshift-marketplace
spec:
  sourceType: grpc
  grpcPodConfig:
    securityContextConfig: legacy
  image: rguske-rhel9-disco-bastion.disco.local:8443/disco/redhat/redhat-operator-index:v4.21
  displayName: My Operator Catalog
  publisher: rguske-disco-lab
  updateStrategy:
    registryPoll:
      interval: 30m
EOF

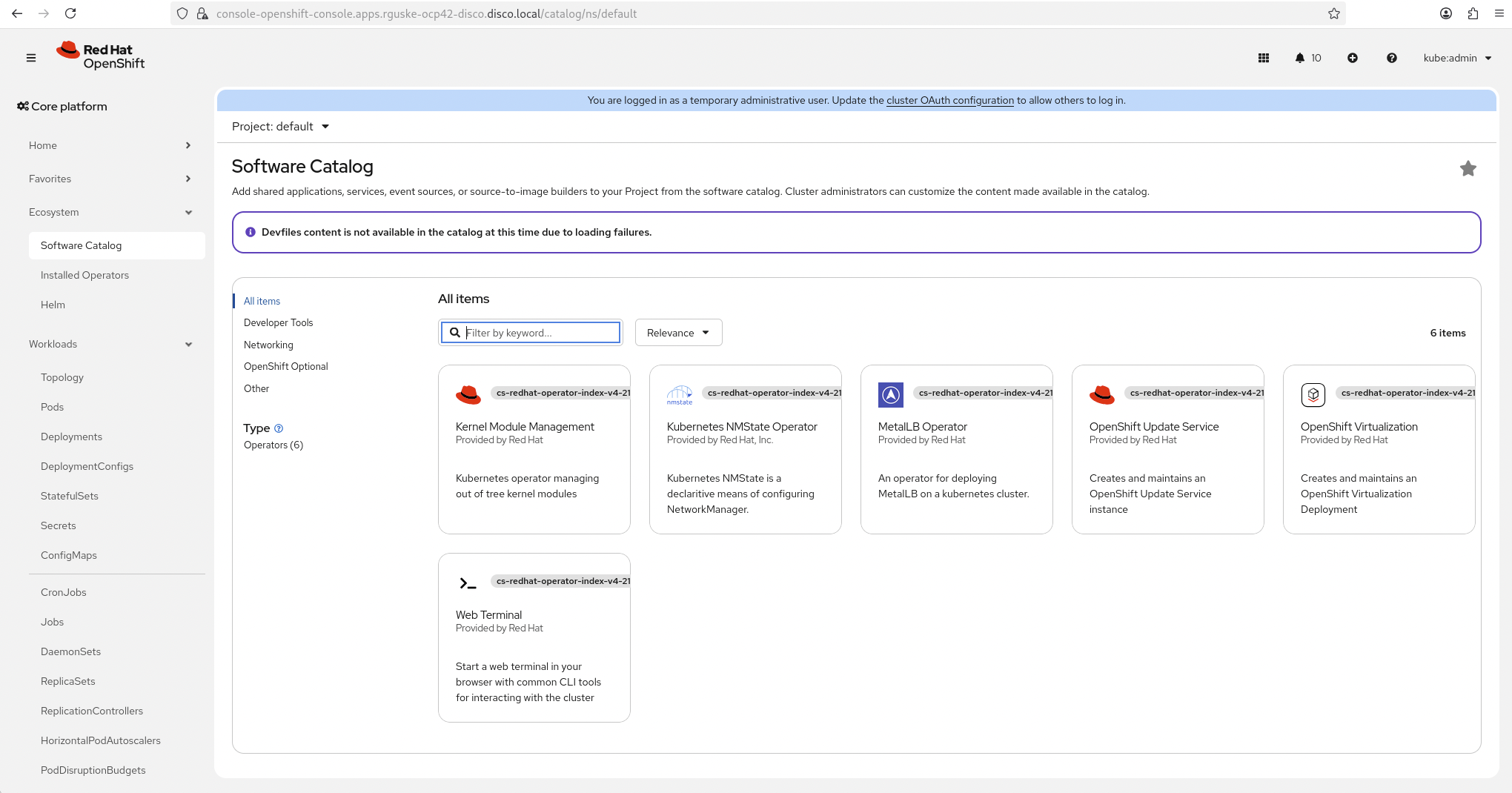

disco-cluster-operator

Install the OpenShift Update Serve Operator and create the instance using the created file which is located in /home/rguske/openshift/mirror/working-dir/cluster-resources/:

updateService.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
apiVersion: updateservice.operator.openshift.io/v1
kind: UpdateService
metadata:
  annotations:
    createdAt: Monday, 27-Apr-26 15:46:08 UTC
    createdBy: oc-mirror v2
    oc-mirror_version: 4.21.0-202604140043.p2.g12f1b06.assembly.stream.el9-12f1b06
  name: update-service-oc-mirror
spec:
  graphDataImage: rguske-rhel9-disco-bastion.disco.local:8443/disco/openshift/graph-image:latest
  releases: rguske-rhel9-disco-bastion.disco.local:8443/disco/openshift/release-images
  replicas: 2
status: {}

The update service will be available after applying the configuration but it'll not trust your registry. Therefore, a ConfigMap with the root certificate of yopur mirror registry needs to be created.

Docs: Configuring access to a secured registry for the OpenShift Update Service Docs: Configuring additional trust stores for image registry access

You can add references to a config map that has additional certificate authorities (CAs) to be trusted during image registry access to the image.config.openshift.io/cluster custom resource (CR).

Important is, that the name of your mirror registry is included as well as the name updateservice-registry, which will be picked up by the CLuster Service Operator.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
oc -n openshift-config apply -f - <<EOF
apiVersion: v1
kind: ConfigMap
metadata:
  name: my-mirror-registry-ca
data:
  updateservice-registry: |
    -----BEGIN CERTIFICATE-----
    MIIEHDCCAwSgAwIBAgIUFY/Z+WmgJ+8SIREIa3Cl3FRj9jYwDQYJKoZIhvcNAQEL
    BQAwgYAxCzAJBgNVBAYTAlVTMQswCQYDVQQIDAJWQTERMA8GA1UEBwwITmV3IFlv
    cmsxDTALBgNVBAoMBFF1YXkxETAPBgNVBAsMCERpdmlzaW9uMS8wLQYDVQQDDCZy
    Z3Vza2UtcmhlbDktZGlzY28tYmFzdGlvbi5kaXNjby5sb2NhbDAeFw0yNjA0MjQx
    NDE3MTZaFw0yOTAyMTExNDE3MTZaMIGAMQswCQYDVQQGEwJVUzELMAkGA1UECAwC
    VkExETAPBgNVBAcMCE5ldyBZb3JrMQ0wCwYDVQQKDARRdWF5MREwDwYDVQQLDAhE
...
    AQUFBwMBMDEGA1UdEQQqMCiCJnJndXNrZS1yaGVsOS1kaXNjby1iYXN0aW9uLmRp
    c2NvLmxvY2FsMBIGA1UdEwEB/wQIMAYBAf8CAQEwHQYDVR0OBBYEFJvWooMOH9HM
    69OZwSFGVXzbJ5wrMA0GCSqGSIb3DQEBCwUAA4IBAQA6BS7YqGzv0TYbLWs0iG3r
    YTQeVGt1dZK5uf8k2mRHiNkmPbNAsSeEb8eh+Wes3MNn6iT3fC55kZVdGL21jzYu
    ZyYMLJyR83M5sD7sVbbuSOkYgNt20ZdIcqigIkyABRkqcahC7kOypXXJbhkj3fYL
    kyGukgbJRF96hCB9oO8bW3evact/P40arsjHT6qKRIZf0kKm7CYUVRjI4+jlz+oV
    n7iB3Rs8P16UvuFB2LfWmyNfuu21InZhXLmJ+rZJc0qnpq6Rm8iXAq0n8L5ycCHc
    gPt4JJQZJ8JP6bSREgAhqfNSngfLj73O1+S2fuN7i3mCQEv0UajEhQgHQtcZ6r1C
    -----END CERTIFICATE-----
  rguske-rhel9-disco-bastion.rguske.coe.muc.redhat.com..8443: |
    -----BEGIN CERTIFICATE-----
    MIIEHDCCAwSgAwIBAgIUFY/Z+WmgJ+8SIREIa3Cl3FRj9jYwDQYJKoZIhvcNAQEL
    BQAwgYAxCzAJBgNVBAYTAlVTMQswCQYDVQQIDAJWQTERMA8GA1UEBwwITmV3IFlv
    cmsxDTALBgNVBAoMBFF1YXkxETAPBgNVBAsMCERpdmlzaW9uMS8wLQYDVQQDDCZy
    Z3Vza2UtcmhlbDktZGlzY28tYmFzdGlvbi5kaXNjby5sb2NhbDAeFw0yNjA0MjQx
...
    c2NvLmxvY2FsMBIGA1UdEwEB/wQIMAYBAf8CAQEwHQYDVR0OBBYEFJvWooMOH9HM
    69OZwSFGVXzbJ5wrMA0GCSqGSIb3DQEBCwUAA4IBAQA6BS7YqGzv0TYbLWs0iG3r
    YTQeVGt1dZK5uf8k2mRHiNkmPbNAsSeEb8eh+Wes3MNn6iT3fC55kZVdGL21jzYu
    ZyYMLJyR83M5sD7sVbbuSOkYgNt20ZdIcqigIkyABRkqcahC7kOypXXJbhkj3fYL
    kyGukgbJRF96hCB9oO8bW3evact/P40arsjHT6qKRIZf0kKm7CYUVRjI4+jlz+oV
    n7iB3Rs8P16UvuFB2LfWmyNfuu21InZhXLmJ+rZJc0qnpq6Rm8iXAq0n8L5ycCHc
    gPt4JJQZJ8JP6bSREgAhqfNSngfLj73O1+S2fuN7i3mCQEv0UajEhQgHQtcZ6r1C
    -----END CERTIFICATE-----
EOF

After creating the ConfigMap, edit the CR config.openshift.io/v1 named cluster with the new additionalTrustedCA

1
2
3
4
[...]
spec:
  additionalTrustedCA:
    name: my-mirror-registry-ca

Check the pods within the namespace openshift-update-service:

1
2
3
4
5
6
oc -n openshift-update-service get pods
NAME                                      READY   STATUS    RESTARTS   AGE
graph-data-tag-digest                     1/1     Running   0          2m17s
update-service-oc-mirror-98764cbd-cj2sd   2/2     Running   0          8m4s
update-service-oc-mirror-98764cbd-t87tf   2/2     Running   0          8m4s
updateservice-operator-74d959fd7d-qzj8s   1/1     Running   0          46m

The next step is to update the Cluster Update Service with the new route object.

1
2
3
oc -n openshift-update-service get route
NAME                             HOST/PORT                                                                                     PATH   SERVICES                                 PORT            TERMINATION   WILDCARD
update-service-oc-mirror-route   update-service-oc-mirror-route-openshift-update-service.apps.rguske-ocp42-disco.disco.local          update-service-oc-mirror-policy-engine   policy-engine   edge/None     None

After updating the route via the WebConsole in Administration - Cluster Settings - Upstream Configuration, the Service will complain about the not trusted cluster certificate.

It is necessary to patch the cluster-wide proxy configuration with a config map object which contains the cluster self-signed certificate.

Create the cm:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
oc apply -f - <<EOF
apiVersion: v1
kind: ConfigMap
metadata:
  name: ocp-disco-ingress-certs
  namespace: openshift-config
data:
  ca-bundle.crt: |
    # MyPrivateCA (root.crt)
    -----BEGIN CERTIFICATE-----
   zzzzz
    -----END CERTIFICATE-----
EOF

Patch the proxy object:

1
2
3
oc patch proxy/cluster \
     --type=merge \
     --patch='{"spec":{"trustedCA":{"name":"user-ca-bundle"}}}'

Check the updates to the cluster operators:

1
oc get co -w

After a successful reconciliation, the update graph should look good.

Troubleshooting

Typical disconnected blockers in OpenShift agent-based installs are:

  • release image not mirrored correctly
  • OS image URL inaccessible
  • missing release signatures
  • mirrored registry CA not trusted
  • incorrect imageContentSources / ImageDigestMirrorSet
  • registry auth not included in pull secret
  • missing boot artifacts in disconnected cache
  • cluster never transitions from insufficient → ready

Networking

ssh -i ~/.ssh/id_ed25519 core@rguske-ocp42-disco-2.disco.local

DNS:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
[core@rguske-ocp42-disco-1 ~]$ dig +short rguske-ocp42-disco-2.disco.local
192.168.69.203
[core@rguske-ocp42-disco-1 ~]$ dig +short rguske-ocp42-disco-1.disco.local
192.168.69.202
[core@rguske-ocp42-disco-1 ~]$ dig +short rguske-ocp42-disco-3.disco.local
192.168.69.204
[core@rguske-ocp42-disco-1 ~]$ dig +short api.rguske-ocp42-disco.disco.local
192.168.69.200
[core@rguske-ocp42-disco-1 ~]$ dig +short console.apps.rguske-ocp42-disco.disco.local
192.168.69.201

Ping:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
[core@rguske-ocp42-disco-2 ~]$ ping -c 3 rguske-ocp42-disco-1
PING rguske-ocp42-disco-1.disco.local (192.168.69.202) 56(84) bytes of data.
64 bytes from rguske-ocp42-disco-1.disco.local (192.168.69.202): icmp_seq=1 ttl=64 time=0.311 ms
64 bytes from rguske-ocp42-disco-1.disco.local (192.168.69.202): icmp_seq=2 ttl=64 time=0.435 ms
64 bytes from rguske-ocp42-disco-1.disco.local (192.168.69.202): icmp_seq=3 ttl=64 time=0.341 ms

--- rguske-ocp42-disco-1.disco.local ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2003ms
rtt min/avg/max/mdev = 0.311/0.362/0.435/0.052 ms
[core@rguske-ocp42-disco-2 ~]$ ping -c 3 rguske-ocp42-disco-2
PING rguske-ocp42-disco-2.disco.local (192.168.69.203) 56(84) bytes of data.
64 bytes from rguske-ocp42-disco-2.disco.local (192.168.69.203): icmp_seq=1 ttl=64 time=0.052 ms
64 bytes from rguske-ocp42-disco-2.disco.local (192.168.69.203): icmp_seq=2 ttl=64 time=0.103 ms
64 bytes from rguske-ocp42-disco-2.disco.local (192.168.69.203): icmp_seq=3 ttl=64 time=0.082 ms

--- rguske-ocp42-disco-2.disco.local ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2027ms
rtt min/avg/max/mdev = 0.052/0.079/0.103/0.020 ms
[core@rguske-ocp42-disco-2 ~]$ ping -c 3 rguske-ocp42-disco-3
PING rguske-ocp42-disco-3.disco.local (192.168.69.204) 56(84) bytes of data.
64 bytes from rguske-ocp42-disco-3.disco.local (192.168.69.204): icmp_seq=1 ttl=64 time=0.360 ms
64 bytes from rguske-ocp42-disco-3.disco.local (192.168.69.204): icmp_seq=2 ttl=64 time=1.24 ms
64 bytes from rguske-ocp42-disco-3.disco.local (192.168.69.204): icmp_seq=3 ttl=64 time=1.25 ms

Logs

Logs:

On the Rendevouz host run journalctl assisted-service.service -f

On the worker nodes run journalctl -b -f -u release-image.service -u bootkube.service -u node-image-pull.service -f

Cluster Status validations

Inspect cluster validation status directly.

1
curl -s http://localhost:8090/api/assisted-install/v2/clusters | jq

Authorization failed:

1
{ "code": 401, "message": "unauthenticated for invalid credentials" }

The assisted-service API is protected, so the unauthenticated response is expected.

Obtain the token:

1
2
podman inspect 580  | jq '.[0].Config.Env' | grep USER_AUTH_TOKEN
  "USER_AUTH_TOKEN=eyJhbGciOiJFUzI1Ni...OFQ1DwtPZBRY3UKEswjgXEJSbrQ",

Check the cluster status:

1
2
3
4
5
TOKEN="eyJhbGciOiJFUzI1Ni...OFQ1DwtPZBRY3UKEswjgXEJSbrQ"

curl -s \
  -H "Authorization: $TOKEN" \
  http://localhost:8090/api/assisted-install/v2/clusters | jq

The status summary:

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
[
  {
    "api_vips": [
      {
        "cluster_id": "ceeb9d66-c894-4224-adcc-72283fd213f4",
        "ip": "192.168.69.200",
        "verification": "succeeded"
      }
    ],
    "base_dns_domain": "disco.local",
    "cluster_networks": [
      {
        "cidr": "10.128.0.0/14",
        "cluster_id": "ceeb9d66-c894-4224-adcc-72283fd213f4",
        "host_prefix": 23
      }
    ],
    "connectivity_majority_groups": "{\"majority_groups\":{\"192.168.69.0/24\":[\"35ddb3ef-1234-5220-b32c-331d1cb817a3\",\"96f0818e-1d12-5a86-ab09-ddaacf305552\",\"9bda5859-ae9b-5c6f-87ac-8904cc41b857\"],\"IPv4\":[\"35ddb3ef-1234-5220-b32c-331d1cb817a3\",\"96f0818e-1d12-5a86-ab09-ddaacf305552\",\"9bda5859-ae9b-5c6f-87ac-8904cc41b857\"],\"IPv6\":[]},\"l3_connected_addresses\":{\"35ddb3ef-1234-5220-b32c-331d1cb817a3\":[\"192.168.69.203\"],\"96f0818e-1d12-5a86-ab09-ddaacf305552\":[\"192.168.69.204\"],\"9bda5859-ae9b-5c6f-87ac-8904cc41b857\":[\"192.168.69.202\"]}}",
    "control_plane_count": 3,
    "controller_logs_collected_at": "0001-01-01T00:00:00.000Z",
    "controller_logs_started_at": "0001-01-01T00:00:00.000Z",
    "cpu_architecture": "x86_64",
    "created_at": "2026-04-27T06:55:16.101392Z",
    "deleted_at": null,
    "disk_encryption": {
      "enable_on": "none",
      "mode": "tpmv2"
    },
    "email_domain": "Unknown",
    "enabled_host_count": 3,
    "feature_usage": "{\"Hyperthreading\":{\"data\":{\"hyperthreading_enabled\":\"all\"},\"id\":\"HYPERTHREADING\",\"name\":\"Hyperthreading\"},\"OVN network type\":{\"id\":\"OVN_NETWORK_TYPE\",\"name\":\"OVN network type\"},\"Static Network Config\":{\"id\":\"STATIC_NETWORK_CONFIG\",\"name\":\"Static Network Config\"}}",
    "high_availability_mode": "Full",
    "host_networks": null,
    "hosts": [],
    "href": "/api/assisted-install/v2/clusters/ceeb9d66-c894-4224-adcc-72283fd213f4",
    "hyperthreading": "all",
    "id": "ceeb9d66-c894-4224-adcc-72283fd213f4",
    "ignition_endpoint": {},
    "image_info": {
      "created_at": "2026-04-27T06:55:16.101392Z",
      "expires_at": "0001-01-01T00:00:00.000Z"
    },
    "ingress_vips": [
      {
        "cluster_id": "ceeb9d66-c894-4224-adcc-72283fd213f4",
        "ip": "192.168.69.201",
        "verification": "succeeded"
      }
    ],
    "install_completed_at": "0001-01-01T00:00:00.000Z",
    "install_started_at": "0001-01-01T00:00:00.000Z",
    "ip_collisions": "{}",
    "kind": "Cluster",
    "last-installation-preparation": {},
    "load_balancer": {
      "type": "cluster-managed"
    },
    "machine_networks": [
      {
        "cidr": "192.168.69.0/24",
        "cluster_id": "ceeb9d66-c894-4224-adcc-72283fd213f4"
      }
    ],
    "monitored_operators": [
      {
        "bundles": null,
        "cluster_id": "ceeb9d66-c894-4224-adcc-72283fd213f4",
        "name": "console",
        "operator_type": "builtin",
        "status_updated_at": "0001-01-01T00:00:00.000Z",
        "timeout_seconds": 3600
      }
    ],
    "name": "rguske-ocp42-disco",
    "network_type": "OVNKubernetes",
    "ocp_release_image": "rguske-rhel9-disco-bastion.disco.local:8443/disco/openshift/release-images@sha256:5d591a70c92a6dfa3b6b948ffe5e5eac7ab339c49005744006aa0dd9d6d98898",
    "openshift_version": "4.21.10",
    "org_soft_timeouts_enabled": true,
    "platform": {
      "external": {},
      "type": "baremetal"
    },
    "progress": {
      "finalizing_stage_started_at": "0001-01-01T00:00:00.000Z"
    },
    "pull_secret_set": true,
    "ready_host_count": 1,
    "schedulable_masters": false,
    "schedulable_masters_forced_true": true,
    "service_networks": [
      {
        "cidr": "172.30.0.0/16",
        "cluster_id": "ceeb9d66-c894-4224-adcc-72283fd213f4"
      }
    ],
    "ssh_public_key": "ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIODE9JnscEgdhihWM2xsqlqsRgBjkVzGQ/Ur5Ek0v9gF rguske@rguske-rhel9-disco-bastion.rguske.coe.muc.redhat.com",
    "status": "insufficient",
    "status_info": "Cluster is not ready for install",
    "status_updated_at": "2026-04-27T06:55:16.099Z",
    "total_host_count": 3,
    "updated_at": "2026-04-27T06:56:30.886142Z",
    "user_managed_networking": false,
    "user_name": "admin",
    "validations_info": "{\"configuration\":[{\"id\":\"platform-requirements-satisfied\",\"status\":\"success\",\"message\":\"Platform requirements satisfied\"},{\"id\":\"pull-secret-set\",\"status\":\"success\",\"message\":\"The pull secret is set.\"}],\"hosts-data\":[{\"id\":\"all-hosts-are-ready-to-install\",\"status\":\"failure\",\"message\":\"The cluster has hosts that are not ready to install.\"},{\"id\":\"sufficient-masters-count\",\"status\":\"success\",\"message\":\"The cluster has the exact amount of dedicated control plane nodes.\"}],\"network\":[{\"id\":\"api-vips-defined\",\"status\":\"success\",\"message\":\"API virtual IPs are defined.\"},{\"id\":\"api-vips-valid\",\"status\":\"success\",\"message\":\"api vips 192.168.69.200 belongs to the Machine CIDR and is not in use.\"},{\"id\":\"cluster-cidr-defined\",\"status\":\"success\",\"message\":\"The Cluster Network CIDR is defined.\"},{\"id\":\"dns-domain-defined\",\"status\":\"success\",\"message\":\"The base domain is defined.\"},{\"id\":\"ingress-vips-defined\",\"status\":\"success\",\"message\":\"Ingress virtual IPs are defined.\"},{\"id\":\"ingress-vips-valid\",\"status\":\"success\",\"message\":\"ingress vips 192.168.69.201 belongs to the Machine CIDR and is not in use.\"},{\"id\":\"machine-cidr-defined\",\"status\":\"success\",\"message\":\"The Machine Network CIDR is defined.\"},{\"id\":\"machine-cidr-equals-to-calculated-cidr\",\"status\":\"success\",\"message\":\"The Cluster Machine CIDR is equivalent to the calculated CIDR.\"},{\"id\":\"network-prefix-valid\",\"status\":\"success\",\"message\":\"The Cluster Network prefix is valid.\"},{\"id\":\"network-type-valid\",\"status\":\"success\",\"message\":\"The cluster has a valid network type\"},{\"id\":\"networks-same-address-families\",\"status\":\"success\",\"message\":\"Same address families for all networks.\"},{\"id\":\"no-cidrs-overlapping\",\"status\":\"success\",\"message\":\"No CIDRS are overlapping.\"},{\"id\":\"ntp-server-configured\",\"status\":\"success\",\"message\":\"No ntp problems found\"},{\"id\":\"service-cidr-defined\",\"status\":\"success\",\"message\":\"The Service Network CIDR is defined.\"}],\"operators\":[{\"id\":\"amd-gpu-requirements-satisfied\",\"status\":\"success\",\"message\":\"amd-gpu is disabled\"},{\"id\":\"authorino-requirements-satisfied\",\"status\":\"success\",\"message\":\"authorino is disabled\"},{\"id\":\"cluster-observability-requirements-satisfied\",\"status\":\"success\",\"message\":\"cluster-observability is disabled\"},{\"id\":\"cnv-requirements-satisfied\",\"status\":\"success\",\"message\":\"cnv is disabled\"},{\"id\":\"fence-agents-remediation-requirements-satisfied\",\"status\":\"success\",\"message\":\"fence-agents-remediation is disabled\"},{\"id\":\"kmm-requirements-satisfied\",\"status\":\"success\",\"message\":\"kmm is disabled\"},{\"id\":\"kube-descheduler-requirements-satisfied\",\"status\":\"success\",\"message\":\"kube-descheduler is disabled\"},{\"id\":\"loki-requirements-satisfied\",\"status\":\"success\",\"message\":\"loki is disabled\"},{\"id\":\"lso-requirements-satisfied\",\"status\":\"success\",\"message\":\"lso is disabled\"},{\"id\":\"lvm-requirements-satisfied\",\"status\":\"success\",\"message\":\"lvm is disabled\"},{\"id\":\"mce-requirements-satisfied\",\"status\":\"success\",\"message\":\"mce is disabled\"},{\"id\":\"metallb-requirements-satisfied\",\"status\":\"success\",\"message\":\"metallb is disabled\"},{\"id\":\"mtv-requirements-satisfied\",\"status\":\"success\",\"message\":\"mtv is disabled\"},{\"id\":\"nmstate-requirements-satisfied\",\"status\":\"success\",\"message\":\"nmstate is disabled\"},{\"id\":\"node-feature-discovery-requirements-satisfied\",\"status\":\"success\",\"message\":\"node-feature-discovery is disabled\"},{\"id\":\"node-healthcheck-requirements-satisfied\",\"status\":\"success\",\"message\":\"node-healthcheck is disabled\"},{\"id\":\"node-maintenance-requirements-satisfied\",\"status\":\"success\",\"message\":\"node-maintenance is disabled\"},{\"id\":\"numa-resources-requirements-satisfied\",\"status\":\"success\",\"message\":\"numaresources is disabled\"},{\"id\":\"nvidia-gpu-requirements-satisfied\",\"status\":\"success\",\"message\":\"nvidia-gpu is disabled\"},{\"id\":\"oadp-requirements-satisfied\",\"status\":\"success\",\"message\":\"oadp is disabled\"},{\"id\":\"odf-requirements-satisfied\",\"status\":\"success\",\"message\":\"odf is disabled\"},{\"id\":\"openshift-ai-requirements-satisfied\",\"status\":\"success\",\"message\":\"openshift-ai is disabled\"},{\"id\":\"openshift-logging-requirements-satisfied\",\"status\":\"success\",\"message\":\"openshift-logging is disabled\"},{\"id\":\"osc-requirements-satisfied\",\"status\":\"success\",\"message\":\"osc is disabled\"},{\"id\":\"pipelines-requirements-satisfied\",\"status\":\"success\",\"message\":\"pipelines is disabled\"},{\"id\":\"self-node-remediation-requirements-satisfied\",\"status\":\"success\",\"message\":\"self-node-remediation is disabled\"},{\"id\":\"serverless-requirements-satisfied\",\"status\":\"success\",\"message\":\"serverless is disabled\"},{\"id\":\"servicemesh-requirements-satisfied\",\"status\":\"success\",\"message\":\"servicemesh is disabled\"}]}",
    "vip_dhcp_allocation": false
  }
]

The status_info is telling something:

1
2
status: insufficient
status_info: Cluster is not ready for install

Specifically:

1
2
"all-hosts-are-ready-to-install" = failure
"The cluster has hosts that are not ready to install."

The next step is to inspect host validation failures:

1
2
3
4
curl -s \
  -H "Authorization: $TOKEN" \
  http://localhost:8090/api/assisted-install/v2/clusters/ceeb9d66-c894-4224-adcc-72283fd213f4/hosts \
| jq '.[] | {hostname: .requested_hostname, status: .status, status_info: .status_info, validations: .validations_info}'

My cluster was stuck in validation progress because of a simple "copy/paste" mistake at the hostname section. I had two times the same hostname configured...

1
2
3
4
5
6
7
8
9
Affected hosts:

Host ID 35ddb3ef-...
Host ID 96f0818e-...

Validation failure:

hostname-unique = failure
Hostname rguske-ocp42-disco-2.disco.local is not unique in cluster

If the discovery was successful, run: journalctl -b -f -u release-image.service -u bootkube.service -u node-image-pull.service -f

Firewall is blocking images from pulling

I faced the issue that my disconnected cluster couldn't pull images from my mirror registry anymore. Basic from one of the nodes checks:

1
nc -vz rguske-rhel9-disco-bastion.disco.local 8443

1
curl -vk https://rguske-rhel9-disco-bastion.disco.local:8443/v2/

On the mirror registry host:

1
sudo ss -tulpn | grep 8443

1
sudo firewall-cmd --list-all

1
2
sudo firewall-cmd --permanent --add-port=8443/tcp
sudo firewall-cmd --reload

Opening port 8443 again helped:

1
2
3
4
nc -vz rguske-rhel9-disco-bastion.disco.local 8443
Ncat: Version 7.92 ( https://nmap.org/ncat )
Ncat: Connected to 192.168.69.208:8443.
Ncat: 0 bytes sent, 0 bytes received in 0.02 seconds.
2026-05-12 2026-05-12 Contributors: Robert Guske
